1007 PCB Connector 1.0mm Pitch Connectors Wire To Board Connectors

dsvsdvsd

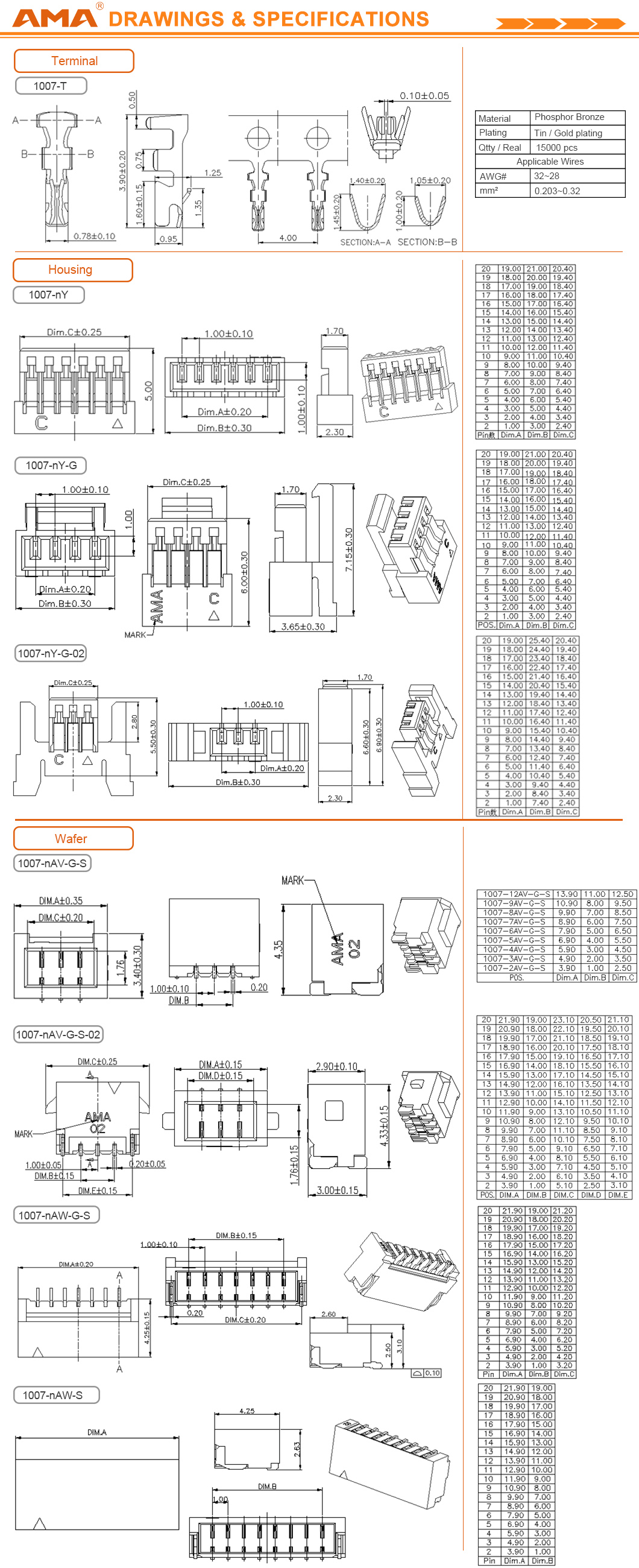

1007‐nY‐G series

▲SPECIFICATIONS         Unit:mm

△Current rating:1A AC/DC;

△Voltage rating:125V AC/DC;

△Temperature range:-25℃ to +85℃;

△Contact resistance:20 mΩ max;

△Insulation resistance:100 MΩ min;

△Withstanding voltage:500 VAC/minute;

1007‐nY‐G‐02 series

▲SPECIFICATIONS         Unit:mm

△Current rating:1A AC/DC;

△Voltage rating:125V AC/DC;

△Temperature range:-25℃ to +85℃;

△Contact resistance:20 mΩ max;

△Insulation resistance:100 MΩ min;

△Withstanding voltage:500 VAC/minute;

1007‐T series

▲SPECIFICATIONS        Unit:mm

△Current rating:1A AC/DC;

△Voltage rating:125V AC/DC;

△Temperature range:-25℃ to +85℃;

△Contact resistance:20 mΩ max;

△Insulation resistance:100 MΩ min;

△Withstanding voltage:500 VAC/minute;

1007‐nAV‐G‐S series

▲SPECIFICATIONS        Unit:mm

△Current rating:1A AC/DC;

△Voltage rating:125V AC/DC;

△Temperature range:-25℃ to +85℃;

△Contact resistance:20 mΩ max;

△Insulation resistance:100 MΩ min;

△Withstanding voltage:500 VAC/minute;

1007‐nAV‐G‐S‐02 series

▲SPECIFICATIONS         Unit:mm

△Current rating:1A AC/DC;

△Voltage rating:125V AC/DC;

△Temperature range:-25℃ to +85℃;

△Contact resistance:20 mΩ max;

△Insulation resistance:100 MΩ min;

△Withstanding voltage:500 VAC/minute;

1007‐nAW‐S series

▲SPECIFICATIONS         Unit:mm

△Current rating:1A AC/DC;

△Voltage rating:125V AC/DC;

△Temperature range:-25℃ to +85℃;

△Contact resistance:20 mΩ max;

△Insulation resistance:100 MΩ min;

△Withstanding voltage:500 VAC/minute;

1007‐nAW‐G‐S series

▲SPECIFICATIONS         Unit:mm

△Current rating:1A AC/DC;

△Voltage rating:125V AC/DC;

△Temperature range:-25℃ to +85℃;

△Contact resistance:20 mΩ max;

△Insulation resistance:100 MΩ min;

△Withstanding voltage:500 VAC/minute;
